RV MAR PORTUGAL

Vessel Profile

Home port:
Lisboa, Portugal
Home port Coordinates:
Latitude: 38.6974 Longitude: -9.2307
Organisation & Address:

Instituto Português do Mar e da Atmosfera (PT)

Portuguese Institute for the Ocean and Atmosphere (EN)

Vessel Web site address:
Normal Area of Operation:

North Atlantic

Max No of EF+ Days:
15
Vessel details:

Length

Breadth

Draught

Gross Tonnage

Ice class

DP

Service speed

Max No. Scientific

Berths

No. of EF+ Scientific Berths

75.60 m

14.80 m

4.50 m

2290 T

NO

YES

DP0

10 knots

30

30

Technical Detail

Laboratory Facilities (fixed and temporary):

Fisheries, geology and multi-purpose (dry) laboratories.

Tunnel freezer: capacity: 6 m3, -40ºC

Chambers refrigerator: capacity: 10m3,temperature ranging from -30ºC to +4ºC.

-80ºC Lab freezer.

Refrigerators.

Capacity to carry containerized labs

Bow:

1 x LARS position (ROV Luso)

1x 20ft

1x20ft or 2x10ft

Middle ship:

1 x 20ft or 2 x 10ft (6T max capacity)

Stern:

1 x 10ft or 1 x 8ft

CTD/Plankton sampling:

CTD and Rosette sampler, 6000m deployment capability.

Towed and lowered plankton nets.

Multi-Beam(s)/ Sub Bottom profiling:

Multibeam echosounder (reference to be available soon)

Fisheries Echo Sounders/Sonar:

EK80 @ 4 frequencies

USBL:

To be acquired soon

Coring/Sampling Capabilities:
Winches:

2 x Trawl winches pull traction: 1st layer 17t and last layer: 8t (3000m x 24mm wire)

1 x CTD winch 6000m x 11 mm wire

1 x Hydrographic (reference to be available soon)

2 x Gilson winches pull traction: 1st layer 7.6 and last layer: 2 x Auxiliary winches: 1st layer 0,7t and last layer 0.5t (70m x 8mm wire).

2 x Net drum winches

Drum 1: 10 m3, pull traction: 1st layer 28t and last layer 5.6t.

Drum 2: 4.6 m3, pull traction: 1st layer 14.1t and last layer 2.8t.

Communications:

Under definition

Special features:

Moonpool

Dynamic position 0 (DP0)

Scientific Limitations (i.e. geophysics, coring, fisheries, any other discipline that cannot be performed on board for whatever the reason)

Streamer for seismic inoperational.

Vessel capability to support ROV deployment:

Yes, capable.

Support Offered to EurofleetsPlus Users:

All vessel equipment will be made available to EurofleetsPlus on request. Technical support on vessel equipment will be available during the entire survey.

Vessel availability by location and by year/time of year for Eurofleets+:

Year

Location

Availability by Month

Ports of operation in the period of availability

2020

Normal operating areas (offshore Portugal and Spain)

3 weeks July or August (to be confirmed)

Lisbon, Portugal

2021

Normal operating areas (offshore Portugal and Spain)

3 weeks July or August (to be confirmed)

Lisbon, Portugal

2022

Normal operating areas (offshore Portugal and Spain)

3 weeks July or August (to be confirmed)

Lisbon, Portugal

Direct contact accepted from applicants during the proposal preparation?

Yes. Applicants are welcomed to discuss the initial feasibility of their work while they prepare their application with the operator of RV Mar Portugal at e-mail address: info.marportugal@ipma.pt

Certification requirements: Medical certification required for joining the vessel and the list of acceptable certificates.

Up to 12 scientists can be embarked without certification.

More than 12 scientists the following certification is required:

STCW personal survival techiques certificates.

STCW seafarers medical.

Ships security awareness training for seafarers without designated security duties.

Are additional medical checks required

None in addition to STCW seafarers medical.

Survival training certification required for joining vessel

List of acceptable equivalent certification:

STCW personal survival techniques training.

Additional certification required e.g. Ship security awareness / other

Ship security awareness.

Diplomatic clearance required for area of operation

Yes, for operation in neighbouring EEZ´s. Required to be submitted to info.marportugal@ipma.pt

Additional clearances required for area or type of activity

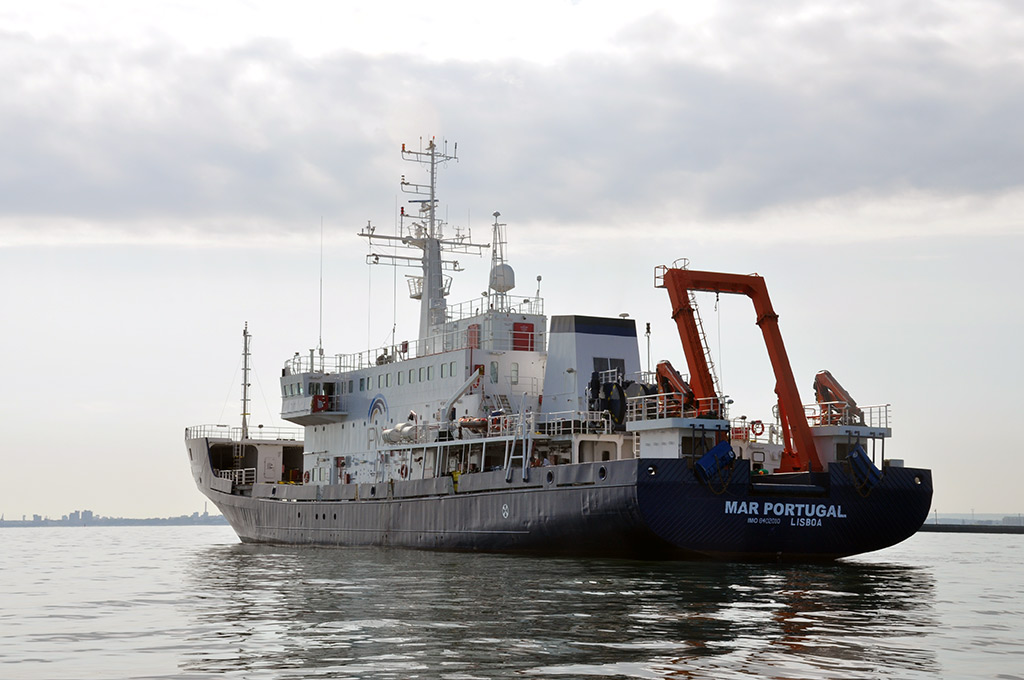

Research vessel Mar Portugal, a 75.6 m multi-purpose platform allowing supporting multidisciplinary oceanographic campaigns.
